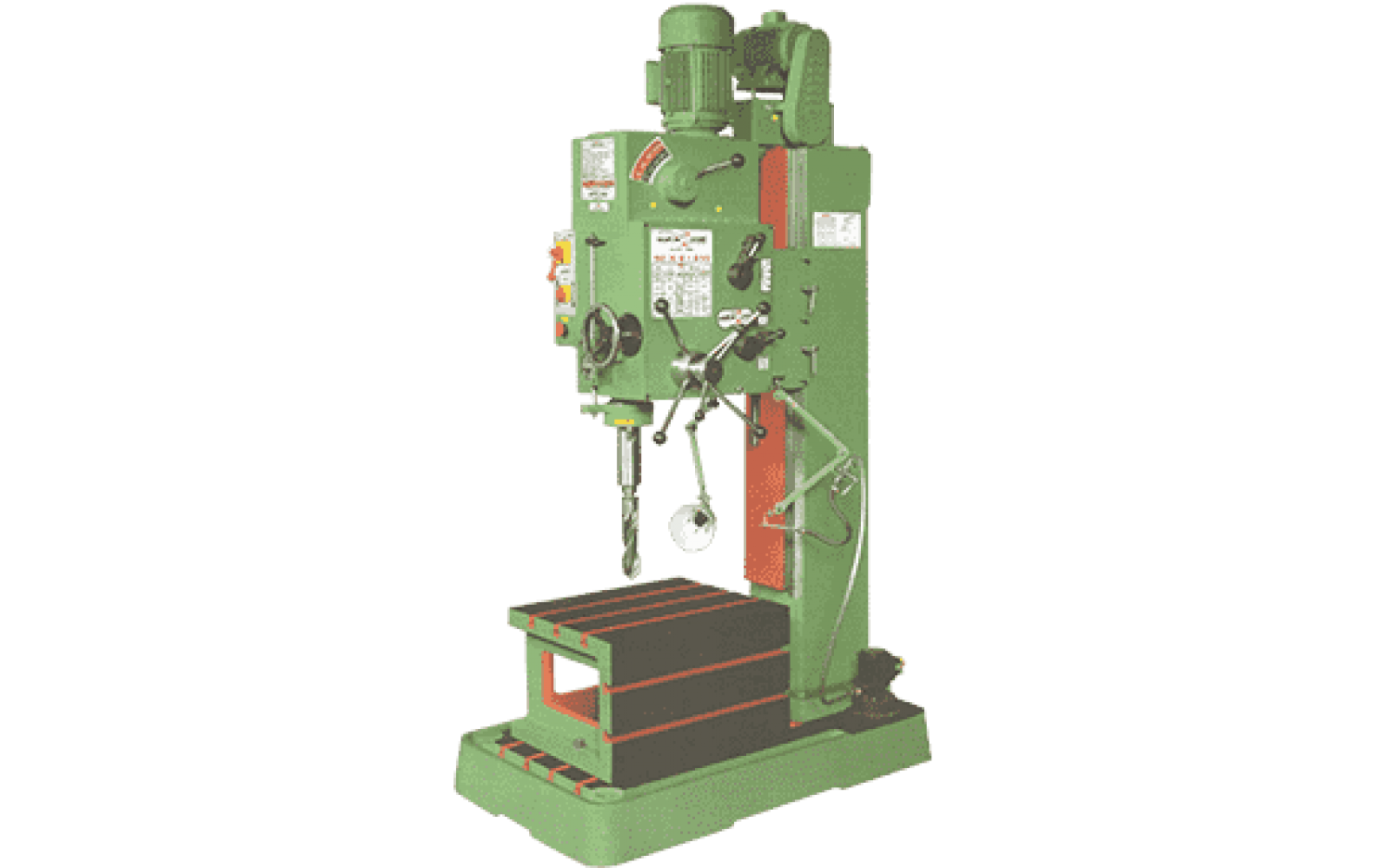

MAAN - 50mm All Geared Box Column Drilling
MAAN - 50mm All Geared Box Column Drilling
Key Features
Electrical Motor: 3HP
"L & T" : Switch - 1no.
Limit Switch-1no.
Complete wiring
- Accessories
- Technical Specification
Standard Accessories:
| Electrical consisting of two motors, contractors, limit switches, control transformers, wiring Etc. |
| Instruction and Operating Manual |
Optional Accessories: (At Extra Price) :
| Box Table |
| Coolant Pump with Fitting |
| Machine Lamp |
| Drill Chuck with key & arbor |
| Drill Sleeve |
| Drill Vice |
| Special T-Bolts |
| Foundation Bolt & Service Tool |
| Wooden Box Packing & Forwarding |
| Capacity | 50mm |
|---|---|
| Technical Specification in MM: | |
| Drilling Capacity in Mild steel | 50 |
| Drilling capacity in cast iron | 60 |
| Tapping capacity in steel: | M 35 |
| Tapping capacity in cast iron | M 42 |
| Boring Capacity | 110 |
| Morse taper in spindle | MT 5 |
| Spindle traverse on vertical | 300 |
| Vertical adjustment of spindle head [traverse] | 750 |
| Distance between spindle and upright | 510 |
| Number of spindle speeds | 8 |
| Range of spindle speeds | 50-1750 RPM |
| Number of power feeds | 4 |
| Range of feeds (mm/rev) | 0.10-0.25 |
| Power of main motor [two speed] | 3 HP,415V AC,3 PH 50 Hz |
| Power of elevating motor | 1 HP,1400 rpm,415V AC,3 Ph 50 Hz |
| Base | |
| Base Size | 1250 X 750 X 160 |
| Working surface | 850 X 750 |
| Distance between base plate to spindle max./min. | 970/100 |
| No. of T Slots | 4 |
| Width of T Slots | 21 |
| Distance between T Slots | 100 |
| General | |
| Box table size [L x W x H] | 600 X 500 X 370 |
| V-belt section of Elevator [lifting] | A-25/A-26 |
| Approxly Overall size [L X W X H] | 1300 X 800 X 2400 |
| Approxly Weight | 1650Kg |
| WOODEN PACKING DEMINSION [L X W X H] | 1350 X 850 X 2500 |
