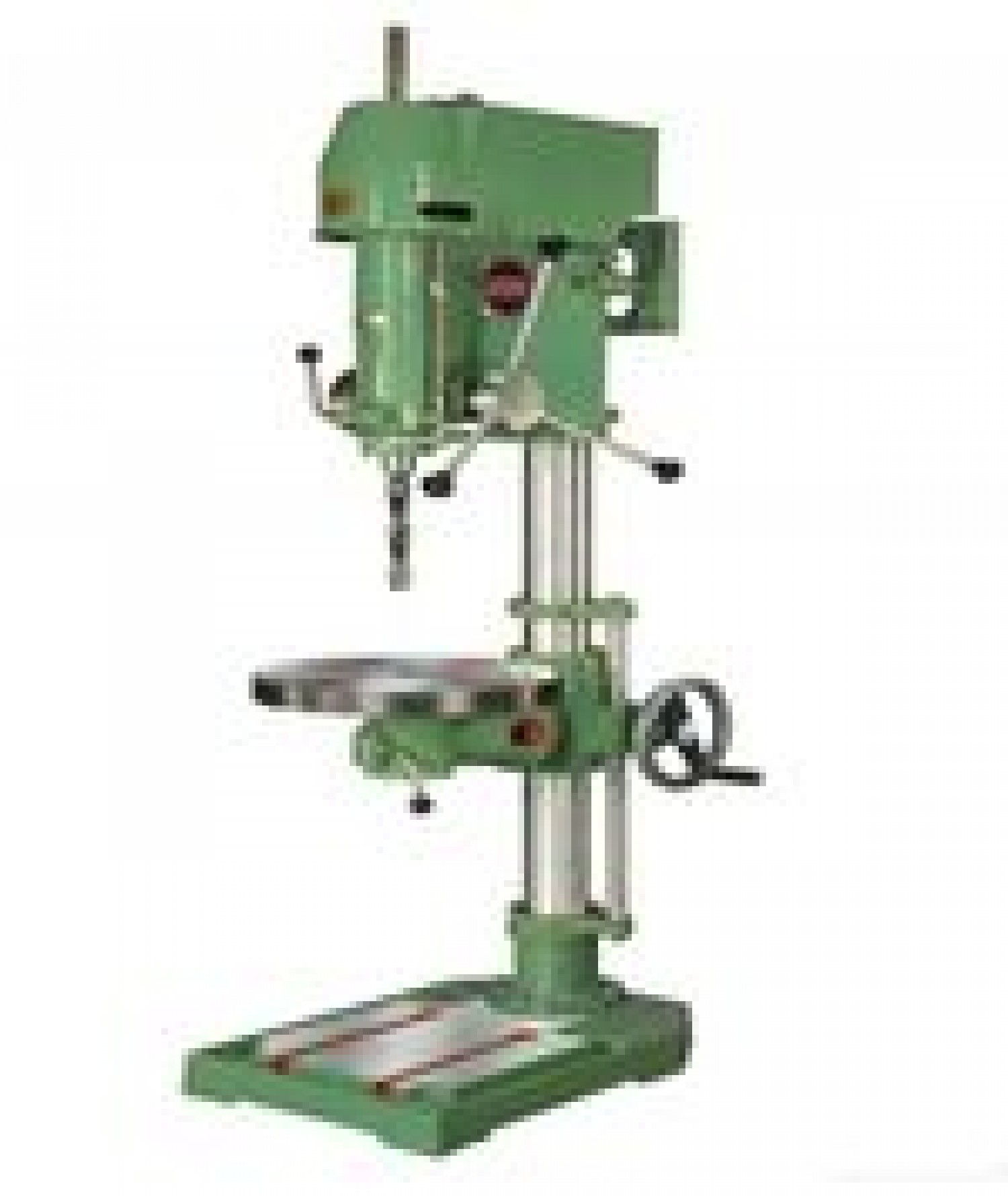

SEW/P-1-F Pillar Drilling Machine
SEW/P-1-F (25mm Cap. Pillar Drilling Machine with Fine feed)
SIDDHAPURA ENGINEERING WORKS, it’s a venture of SIDDHAPURA GROUP, It has come in to existence for last 34 years. With a vast experience of 34 years in the field of machine tools engineering & manufacture of Pillar & Radial drilling machines. It’s main assents is rigid quality inspection methods combined with skilled workmanship led by a team of technically qualified and experienced personnel and dedicated personal attention.
SIDDHAPURA ENGINEERING WORKS aims at creation of wide industry platform in manufacture of drilling machine in wide ranges in mutual benefit between supplier and buyers besides maintaining services, help and close links
Important Features:
Important parts are made from close graded casting.
Main Spindle made from EN steel.
Main Quill and spindle are hardened and grounded and spindle tapper bore is also internal grinded.
Main spindle run out of tolerance as per IS:2199
Drill Head are made from best quality martial and boring on imported boring machine of Japan.
Precision anti-friction bearing for all rotating members.
- Accessories
- Technical Specification
STANDARD ACCESSORIES
| Motor Pulley, Drift key, and fine feed attachment |
OPTIONAL EQUIPMENTS
| Electric Motor, Reversible Switch & V-Belt. |
| DESCRIPTION | CAPACITY & SIZE |
|---|---|
| Drilling Capacity In Steel | 25mm |
| Drilling Capacity In MS | 30mm |
| Column Diameter | 88mm |
| Center Of Spindle To Column | 250mm |
| Maximum Distance From Spindle To Table | 600mm |
| Maximum Distance From Spindle To Base | 900mm |
| Taper In Spindle (Moser Taper) | MT-3 |
| Spindle Travel Maximum | 250mm |
| Number Of Spindle Speed | 73 TO 1800 RPM |
| Table Size | 375 Diameter |
| Base Size (Machine Area) | 350 X 325mm |
| Overall Base Size | 625 X 420mm |
| Overall Height With Guard | 1675mm |
| V-belt Section | B-52 |
| Electrical Motor | 1 HP, 50 Cycle, 1440 RPM (LUBI BRAND) |
| Wooden Case Size ( LXWXH) | 650 X 500 X 1525mm |
