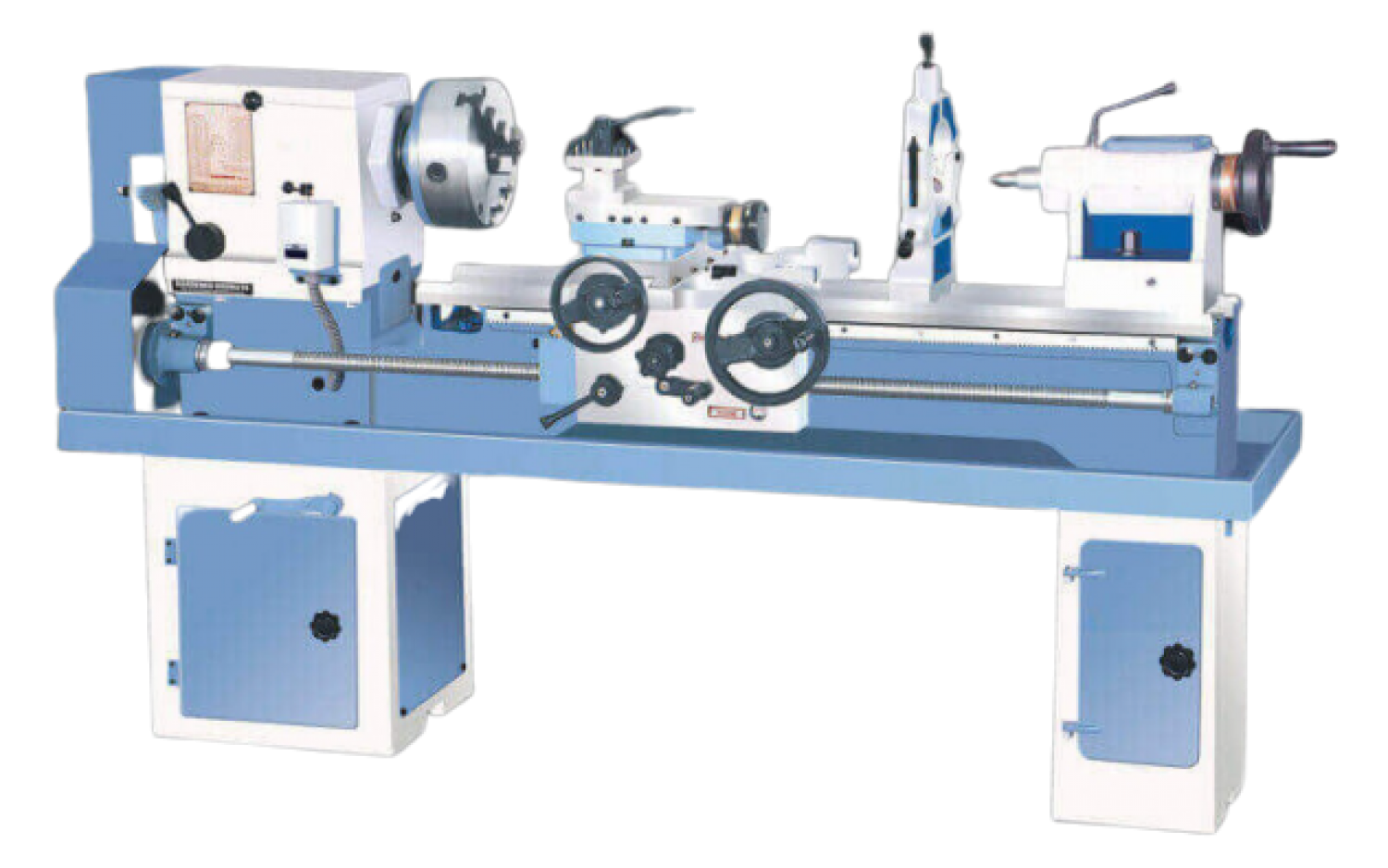

TURBO Medium Duty 215 Under Counter
Special Feature
Bed is made from25 grade cast iron of 180 BHN hardness, strictly inspected with microlevel, hardness tester and straight edge.
Boring of head stock is done on WMW boring machine fitted with induction hardened and ground spindle made from alloy steel.
Apron is totally enclosed in oil bath system with lever type arrangement for automatic feeds.
Hexagonal shaped tail stock with hardened and ground tail stock spindle made from alloy steel having external and internal grinding.
Instruction manual as per Indian standard IS-1878 (Part-1) 1993.
- Accessories
- Technical Specification
STANDARAD ACCESSORIES
| Change Gear set (Inch & mm) |
| Chuck Plate |
| Tool Post Key |
| Centre Adaptor |
| Dead Centre (2 Nos.) |
| Head stock belt |
| Motor Pulley |
| Four Position Tool Post |
EXTRA ACCESSORIES
| Dog or True Chuck |
| Electric Motor & V – Belt with Electrica |
| Coolant Pump, Tank & Nozzle |
| Quick Change Tool Post with tool holders |
| Taper Turning Attachment |
| Reverse – Forward Switch |
| Steady Rest |
| Follow Rest |
| Face Plate |
EXTRA FEATURES
| Notron Gear Box (Single Screw / Double Screw) |
| Any Special Requirement as per Customer’s Drawing. |
COLOUR OPTIONS
| Bayer Blue & Silver Grey / Blue & White (Two Tone) |
| Specification | 215 UND-1 | 215 UND-2 | 215 UND-3 |
|---|---|---|---|
| Bed: | |||
| Bed Type | 2 V & 2 Flat | 2 V & 2 Flat | 2 V & 2 Flat |
| Bed Length | 1375 (4' 6") | 1600 (5'-3") | 1825 (6') |
| Bed Width | 280mm (11") | 280mm (11") | 280mm (11") |
| Gap Length | 110mm | 110mm | 110mm |
| Gap Length in front of Face Plate | 105 mm | 105 mm | 105 mm |
| Capacity: | |||
| Height Of Centre | 215 (8.5") | 215 (8.5") | 215 (8.5") |
| Swing over Bed | 410 mm | 410 mm | 410 mm |
| Swing over Cross Slide | 260 mm | 260 mm | 260 mm |
| Swing in Gap | 610 mm | 610 mm | 610 mm |
| Admit Between Centre | 520 mm | 740mm | 960mm |
| Movement of Cross Slide | 220 mm | 220 mm | 220 mm |
| Movement of Compound Slide | 110 mm | 110 mm | 110 mm |
| Main Spindle: | |||
| Spindle Nose (Threaded Type) | Ø 76.2 mm | Ø 76.2 mm | Ø 76.2 mm |
| Taper Bore in Spindle Sleeve | MT-4 | MT-4 | MT-4 |
| Spindle Bore | Ø 54mm (2.1/8") | Ø 54mm (2.1/8") | Ø 54mm (2.1/8") |
| Tail Stock: | |||
| Quill Dia | Ø 50.8 mm | Ø 50.8 mm | Ø 50.8 mm |
| Taper in Quill | MT-3 | MT-3 | MT-3 |
| Quill Travel | 150 mm | 150 mm | 150 mm |
| Speed: | |||
| No. of Spindle Speed | 8 | 8 | 8 |
| RPM (Low/High) | 35 – 500 | 35 – 500 | 35 – 500 |
| Threads: | |||
| Metric Thread | 13 (1 to 6 mm) | 13 (1 to 6 mm) | 13 (1 to 6 mm) |
| English Thread | 19 (2 to 24 TPI) | 19 (2 to 24 TPI) | 19 (2 to 24 TPI) |
| Lead Screw | Ø 1.25 | Ø 1.25" x 4 TPI | Ø 1.25" x 4 TPI |
| Electricals: | |||
| Motor Power | 2 H.P. / 1.5 KW | 2 H.P. / 1.5 KW | 2 H.P. / 1.5 KW |
| Drive: | |||
| V Belt | B – 70 | B – 70 | B – 70 |
| General: | |||
| Weight (Approx.) | 650 Kg. | 750 Kg. | 825 Kg. |
| Floor Space Occupied in (mm) | 1675 x 540 | 1800 x 540 | 2125 x 540 |
| (Approx.)L x W x H | x 1160 | x 1160 | x 1160 |
