Turner - Over Size Heavy Duty Lathe Machine

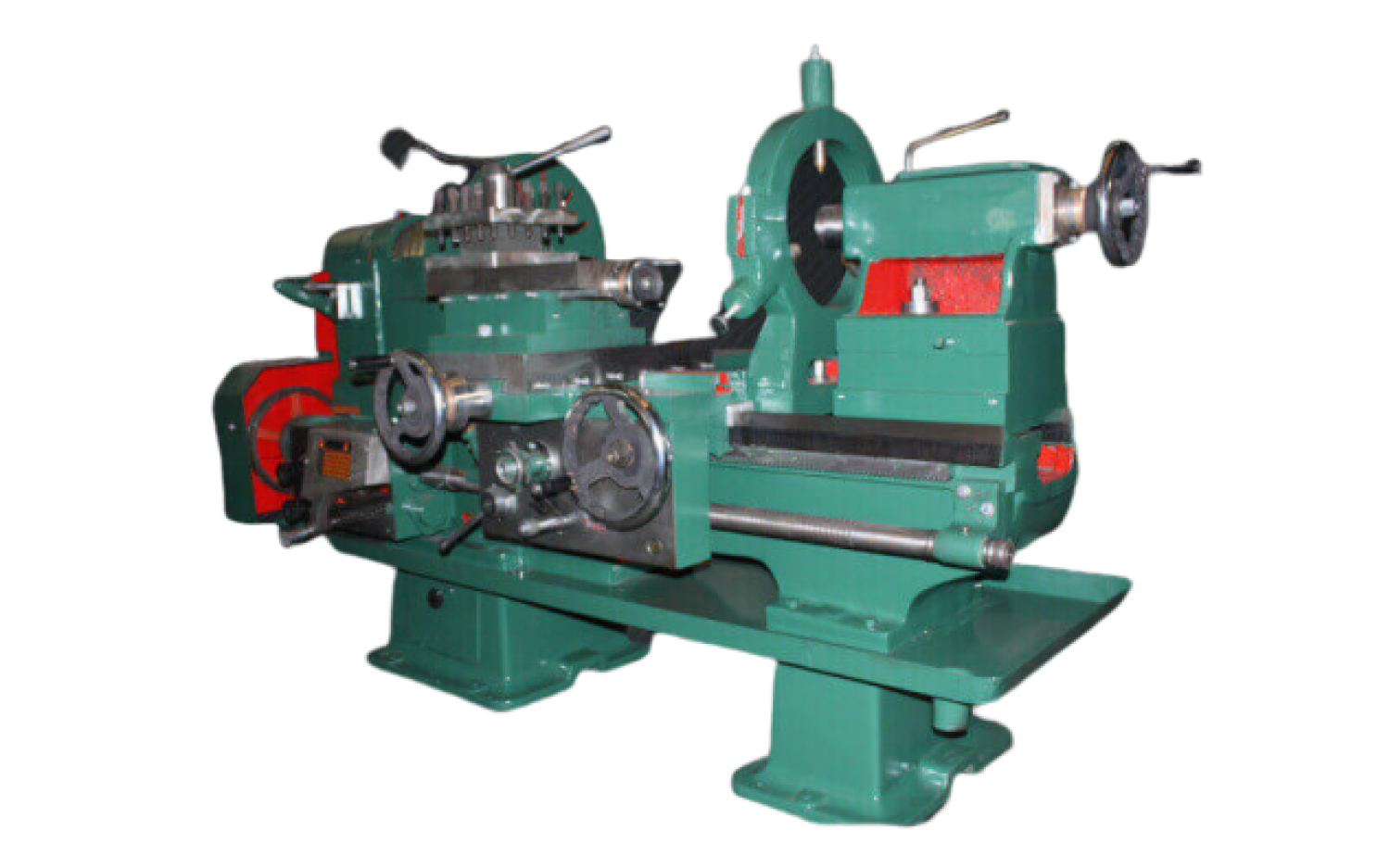

Over Size Heavy Duty Lathe Machine
SPECIAL FEATURE
Bed is made from25 grade cast iron of 180 BHN hardness, strictly inspected with microlevel, hardness tester and straight edge.
Boring of head stock is done on WMW boring machine fitted with induction hardened and ground spindle made from alloy steel.
Apron is totally enclosed in oil bath system with lever type arrangement for automatic feeds.
Hexagonal Shaped tail stock with hardened and ground spindle made from alloy steel having external and internal grinding.
nstructions manual as per Indian standard IS-1878 (part-1) 1993
- Accessories
- Technical Specification
| Change Gear Set (Inch & mm) |
| Steady Rest (ID 14?) |
| Follow Rest |
| Face Plate (Ø 21?) |
| Chuck Plate (Ø 12?) |
| Tool Post Key |
| Centre Adaptor |
| Dead Centre (2 Nos.) |
| Head Stock Belt |
| Motor Pulley |
| Four Position tool post |
| Dog or True Chuck |
| Coolant Pump, Tank & Nozzle |
| Quick Change Tool Post with tool holders |
| Taper Turning Attachment |
| Reverse-Forward Switch |
| Electric Motor & V-Belt Set with Electricals |
| V-Belt taper Roller Bearing type / Flat / V-belt gun metal bush bearing type |
| Norton Gear Box (Single Screw) |
| Extra Bed Width 20” |
| Extra Height of Centre 20” |
| Extra Spindle Bore (From 4.1/8” to 6.1/8”) |
| Any Special Requirement as per customer’s drawing. |
| Blue & White (Two Tone) |
| Emerald Green |
|
Specification |
OS-1 |
OS-2 |
OS-3 |
OS-4 |
OS-5 |
|
Bed: |
| Bed Type | 2 V & 2 Flat | 2 V & 2 Flat | 2 V & 2 Flat | | |
| Bed Length | 7'-0" | 9'-0" | 10'-0" | 12'-0" | 14'-0" |
| Bed Width | 457 mm(18") | 457 mm(18") | 457 mm(18") | 457 mm(18") | 457 mm(18") |
| Gap Length | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm |
| Gap Length in front of face Plate | 160 mm | 160 mm | 160 mm | 160 mm | 160 mm |
|
Capacity: |
| Height Of Centre | 406 mm(16") | 406 mm(16") | 406 mm(16") | 406 mm(16") | 406 mm(16") |
| Swing over Bed | 800 mm | 800 mm | 800 mm | 800 mm | 800 mm |
| Swing over Gap | 1100 mm | 1100 mm | 1100 mm | 1100 mm | 1100 mm |
| Swing over Cross Slide | 575 mm | 575 mm | 575 mm | 575 mm | 575 mm |
| Admit Between Centre | 800 mm | 1400 mm | 1700 mm | 2300 mm | 2900 mm |
| Movement of Cross Slide | 375 mm | 375 mm | 375 mm | 375 mm | 375 mm |
| Movement of Compound Slide | 190 mm | 190 mm | 190 mm | 190 mm | 190 mm |
|
Main Spindle: |
| Spindle Nose (Threaded Type) | Ø 105 mm | Ø 105 mm | Ø 105 mm | Ø 105 mm | Ø 105 mm |
| Taper Bore in Spindle Sleeve | MT-5 | MT-5 | MT-5 | MT-5 | MT-5 |
| Spindle Bore | Ø 80 mm | Ø 80 mm | Ø 80 mm | Ø 80 mm | Ø 80 mm |
|
Tail Stock: |
| Quill Dia | Ø 90 mm | Ø 90 mm | Ø 90 mm | Ø 90 mm | Ø 90 mm |
| Taper in Quill | MT-5 | MT-5 | MT-5 | MT-5 | MT-5 |
| Quill Travel | 190 mm | 190 mm | 190 mm | 190 mm | 190 mm |
|
Speed: |
| No. of Spindle Speed | 8 | 8 | 8 | 8 | 8 |
| RPM (Low/High) | 35 – 500 | 35 – 500 | 35 – 500 | 35 – 500 | 35 – 500 |
|
Threads: |
| Metric Thread | 13 (1 to 6 mm) | 13 (1 to 6 mm) | 13 (1 to 6 mm) | | |
| Inch | 20(1 to 24 TPI)Inch | 20(1 to 24 TPI)Inch | 20(1 to 24 TPI)Inch | 20(1 to 24 TPI)Inch | 20(1 to 24 TPI)Inch |
| Lead Screw Dia & Pitch | 2" x 2 TPI | 2" x 2 TPI | 2" x 2 TPI | 2" x 2 TPI | 2" x 2 TPI |
|
Electricals: |
| Motor Power | 5 HP | 5 HP | 5 HP | 5 HP | 5 HP |
