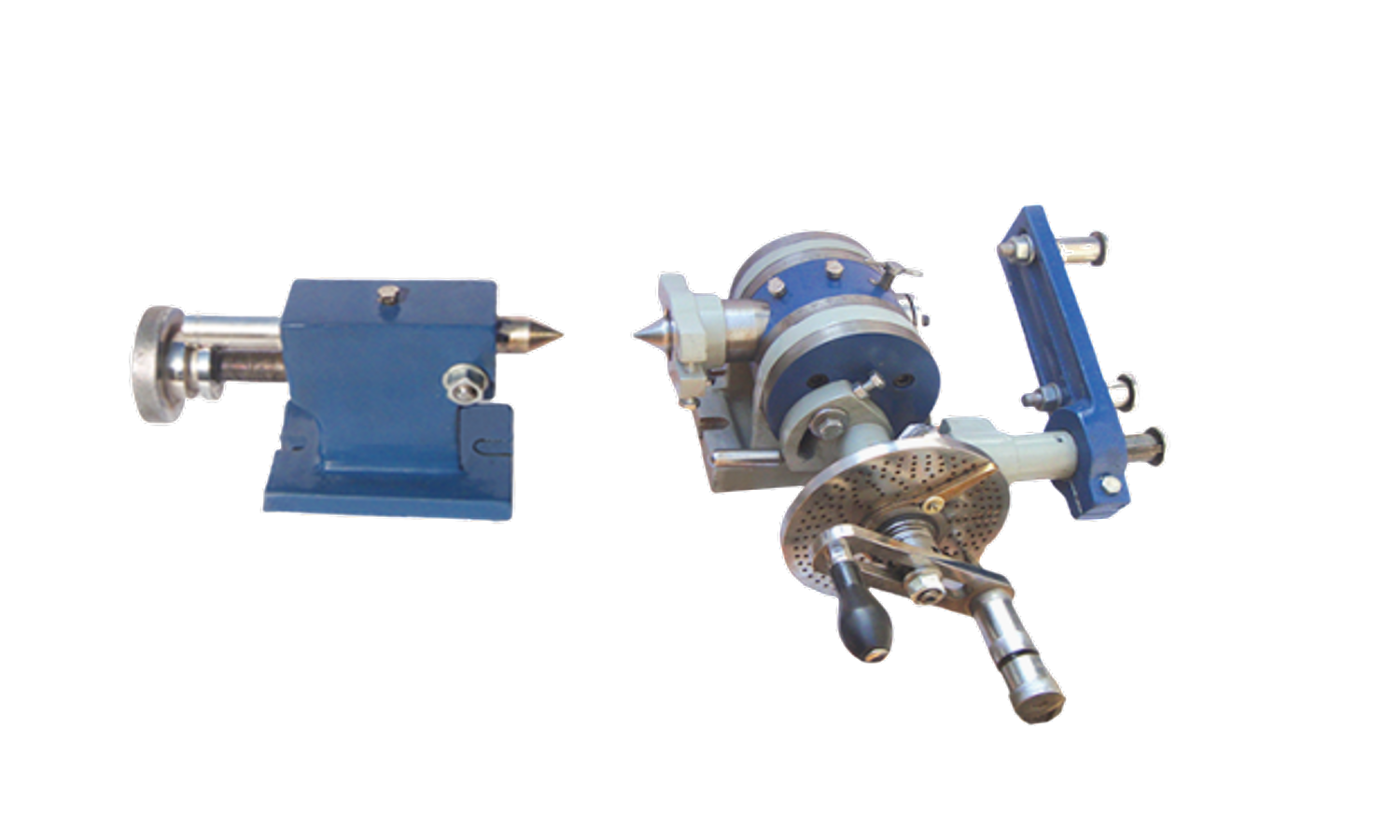

UNIQUE- Dividing Head Code No.U351

Unique Dividing heads are carefully designed for tool Rooms as well as for production purpose.

They are suitable for indirect and differential indexing as well as for spiral and cam milling operations on universal milling machine.

Unique dividing heads are manufactured from Selected high quality material with Superior workmanship.

Enquiry

Size In Inches	4.1/2	5.1/2	6.1/2	7.1/2
Gear worm ratio	01:40	01:40	01:40	01:40
Centre height in mm	115 mm	142mm	165mm	190mm
Spindle Bore in mm	20 mm	32 mm	38 mm	50mm
Spindle Taper	9º	9º	9º	9º
Overall height Vertical position in mm	180	230	260	290
Length of base in mm	180	230	260	270
Width of base in mm	115	150	170	180
Weight ijn kgs.	40	65	92	98
INDEXING PLATES
Side A	11,16,19,25,37,41,49	11,16,19,25,37,41,49	7,13,16,19,20,23,27,31,33,39,47,53	7,13,16,19,20,23,27,31,33,39,47,53
Side B	13,17,18,27,33,43,51	13,17,18,27,33,43,51	9,11,15,17,18,21,25,29,37,41,49,51	9,11,15,17,18,21,25,29,37,41,49,51
Set of Gears	24,24,28,32,36,40,4448,56,64,72,86,100 teeth	24,24,28,32,36,40,4448,56,64,72,86,100 teeth	24,24,28,32,36,40,4448,56,64,72,86,100 teeth	24,24,28,32,36,40,4448,56,64,72,86,100 teeth
	D.P 14	D.P 14	D.P 12	D.P 12
